Build & run

The v0.3.0 macOS ARM64 preview includes navigation, persistent notes/preferences, Java collections, APK-local reflection, scheduling, bounded guest workers, native image viewing and modal panels, bounded private file input, staged package-confined output and FileChannel transfers. The archive packages five authored fixtures and three hash-checking public APK fetch helpers. Install Rust 1.95.0 and, on macOS, Xcode Command Line Tools for the Objective-C/AppKit bridge. The runtime build does not require an Android SDK. Read the preview scope notes.

git clone https://github.com/OthmaneBlial/droidless.git
cd droidless
cargo build --release --locked
sh tools/fetch-simple-calculator.sh
target/release/droidless run --size 192x400 \
  artifacts/apks/SimpleCalculator.apk

The last command opens native controls on macOS. Headless mode executes the guest and emits the laid-out View tree as JSON. This path has been tested on macOS; Linux has no verified build or native UI yet.

target/release/droidless run --size 192x400 artifacts/apks/SimpleCalculator.apk \
  --headless --click 7 --click + --click 5 --click =

APK parsing is not a compatibility guarantee. Begin with the demonstrated APKs and treat other apps as experiments.

CLI reference

Use run explicitly, or pass an APK path directly. For example, droidless app.apk starts the runtime. The following commands accept a single APK path.

target/release/droidless inspect artifacts/apks/SimpleCalculator.apk
target/release/droidless run artifacts/apks/SimpleCalculator.apk \
  --headless --trace-framework --trace-lifecycle --stats

--trace-bytecode prints instruction locations; --trace-methods prints calls; --trace-framework prints compatibility calls; --trace-lifecycle prints lifecycle transitions. --stats or --heap-stats reports parse time, elapsed time, instruction and call counts, and heap statistics. These are diagnostics, not comparative benchmarks. --size WIDTHxHEIGHT sets each logical axis to 128–4096; the default is 420×720.

--advance-ms MILLISECONDS lays out and polls the current frame before advancing the deterministic headless clock and draining due guest callbacks. Native windows use monotonic host time. Replaying the authored timer produces Timer done: 3:

target/release/droidless run --headless --ephemeral fixtures/generated/scheduling.apk \
  --click "Start timer" --advance-ms 1500 --advance-ms 1500 --advance-ms 1500

--click TEXT replays a View click. --key CHARACTER replays key-down/up events through the guest’s key listener. The following headless sequence produced 2.0; it does not establish KasCalc native keyboard delivery. Native Counter key delivery was checked separately.

sh tools/fetch-kascalc.sh
target/release/droidless run --headless artifacts/apks/KasCalc.apk \
  --key 7 --key - --key 5 --key =

Current source also provides --back. Escape delivers virtual onBackPressed in a native window, including APK overrides. This authored fixture shows a two-screen round trip:

target/release/droidless run --headless fixtures/generated/intents.apk \
  --click "Open detail" --back

Preferences persist per package by default. --data-dir APPS_ROOT selects a host-approved root; --ephemeral keeps data in memory only. --input TEXT edits the first enabled visible EditText. This authored fixture saves a note and loads it in a fresh process:

target/release/droidless run --headless --data-dir artifacts/preferences-demo \
  fixtures/generated/preferences.apk --click "Edit note" \
  --input "This note survives restart" --click "Save note"
target/release/droidless run --headless --data-dir artifacts/preferences-demo \
  fixtures/generated/preferences.apk

Architecture

The workspace separates binary formats, execution, and the desktop host into three crates.

droidless-formats

Own parsers for DEX, Android binary XML and resources.arsc; ZIP/deflate reading uses the Rust zip crate. The manifest identifies the launcher Activity.

droidless-runtime

A DEX register interpreter, handle-based object heap with mark-and-sweep collection, method dispatch, lifecycle callbacks, framework methods, XML inflation and View layout.

droidless

Inspection and runtime commands. On macOS, a small Objective-C bridge renders AppKit views and routes input callbacks into guest methods.

A click invokes the guest’s registered onClick handler or XML callback, executes its bytecode, then redraws the native controls from the resulting View tree. There is no application-specific calculator implementation in the host.

Execution is bounded: the guest call stack is capped at 128 frames, with five million instructions per launch, input, close or message poll. APK parsing rejects unsafe ZIP paths, duplicates, symlinks and oversized inputs without extracting files. These limits do not make the prototype a security sandbox.

There is no audited process isolation, complete bytecode verifier or APK signature trust policy. Inspected Android permissions grant no desktop capabilities; current source supports isolated preferences/SQLite and explicit native folder selection with session-local grants, and returns a fixed virtual value for /proc/self/cmdline; general file, network and native-library APIs are unavailable. Use trusted APKs. Read the full security boundaries.

Compatibility

The target today is a narrow slice of traditional Java Activity applications. Supported operations exist at the level of particular methods and opcodes, not complete Android API classes.

Explicit throws and common implicit Java faults are catchable: integer/long zero division, null access/throw, negative array sizes, array bounds/store errors, casts, string bounds and numeric parse failures propagate guest Throwable objects. Compiled tests cover 17 fault paths, typed hierarchy matching, cross-frame catches, catch-all/finally and getMessage.

Inherited interface assignability and reference-array covariance are exercised by compiled Java tests. Failed class initialization persists: non-Error causes are wrapped in ExceptionInInitializerError, existing Error subclasses propagate directly, and later access throws NoClassDefFoundError. Causes remain rooted through garbage collection.

Concurrent initialization and initialization of default-method superinterfaces remain unsupported. Instruction/field/method checks are not a complete Java type verifier. Unsupported APIs, malformed instructions and resource ceilings remain terminal diagnostics; unsupported methods/opcodes retain method, DEX module and PC context.

Multi-DEX APKs are parsed; split-APK installation is unsupported. Newer invoke forms, container DEX 041 and optimized/quickened DEX are rejected. The resource and layout implementation does not reproduce the complete Android rendering system. Read the exact opcode groups and known ceilings.

Evidence

swiftugandan’s Simple Calculator 1.0 supplies the independently built, unmodified public APK shown here. The fetch helper pins its commit and verifies:

7c1adc93607c8511a3abd379f74765747d2ae72fb70c4ff5c471f13e94b98921

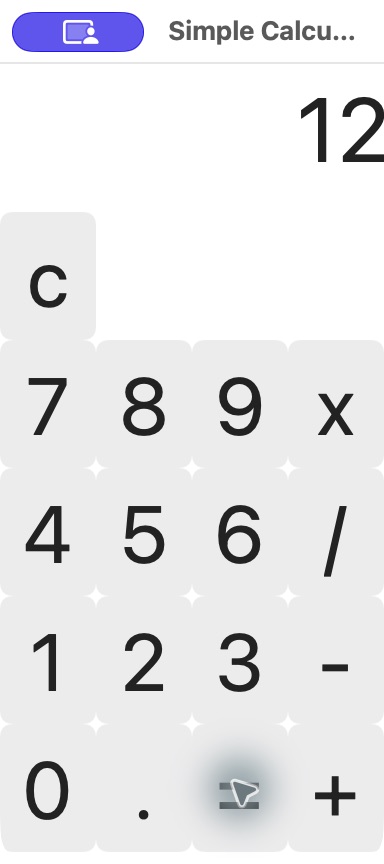

Native macOS button clicks demonstrated 7 + 5 = → 12, 8 × 8 = → 64 and 9 / 3 = → 3. The screenshot below captures the first result. The logical viewport is 192×400; table stretching, gradients and Android theme fidelity remain incomplete.

Seven headless cases verify arithmetic, decimals, multiple digits and clear through this APK’s own callbacks. Native Escape dispatches Back and exits with status 0 after pause/stop/destroy. This runtime is included in v0.3.0; the calculator is fetched unchanged from upstream. The public APK is neither modified nor redistributed.

The macOS executable’s linked-library inspection showed AppKit, QuartzCore, Foundation and system libraries, with no Android runtime. No emulator or Android subprocess fallback participates in execution.

Separately, ten headless KasCalc cases passed through its own listeners: addition, multiplication, division, subtraction, decimals, square/cube roots, backspace, sign and reset. Headless KeyEvent replay produced 2.0 for 7 − 5 =.

Automated tests also execute the unmodified SmallestAPK Hello World app and a separately labeled DROIDLESS-authored Counter fixture. In the current native Counter build, setting the text field to Bonjour and clicking Copy input displayed Bonjour through the APK callback. An ordinary native letter key reached its OnKeyListener, displaying key 45 for the logical q supplied by the French host keyboard layout; the consumed key did not enter the field.

Closing native Counter emitted onPause, onStop and onDestroy, then exited with status 0. The current KasCalc build was rechecked with native 7 + 5 = → 12.0 and the same clean close lifecycle. Native text evidence covers accessibility value editing and ordinary key delivery. The earlier Counter clipboard attempt timed out. Subsequent Preferences verification below proves native UTF-8 paste; full focus and IME behavior remain unverified.

In the authored Intents fixture, native Home text editing survived a Detail round trip. Escape restored the same text and updated title; another Activity intercepted Back in its own bytecode. Finishing the root ended the process with status 0. Tests separately check typed extras, copying, exact lifecycle order, retained Views across GC and inactive finish.

The authored Preferences fixture additionally verifies native paste, save and a fresh runtime displaying the stored UTF-8 note; clear remains cleared after restart. Compiled headless collection checks cover ordered/indexed lists, duplicates/nulls, guest equality, iteration, live read-only views, Class identity and GC retention. The same list/read-only view, snapshot-list, native map-copy and immediate queue contracts also pass on desktop Java 17. Queue checks cover FIFO/duplicates, full capacity, null rejection, guest equality and inherited override dispatch. The Scheduling fixture now also checks resumable worker take/put waits; timed waits and main/native-bridge waiting remain unsupported. The authored Reflection and Primitive contracts verify initialization/access errors, inherited field aliases and all nine primitive TYPE identities; the same contracts pass on desktop Java 17. The compiled ThrowableContract also checks retained explicit/implicit fault locations, cause cycles, GC, refreshed traces and diagnostic callback failures; its separate desktop Java driver passes. Printed locations use DEX PCs; source lines, StackTraceElement arrays, suppression and stream/writer overloads remain unsupported. This is not an Android reference run. The unmodified Notepad 1.0.0 APK now opens its Notes screen and note editor in the headless runtime. The 390 × 844 View tree contains two editable fields; typing Hello, desktop updates the first. Its SHA-256 is pinned and checked by tools/fetch-notepad.sh. Two notes now persist in the APK's private SQLite database. The Notes screen renders both after Back and after a fresh process restart. The local replay also reopens an existing note, updates its title and multiline body, retains the same row ID and restores both fields in a fresh editor process. Separate AppKit checks select an existing row with the mouse, type both fields, save through Escape and reopen the exact edits in a fresh native process; the original row ID is retained and both processes exit cleanly. A separate malformed-body replay now logs the real SAX fault, shows the APK’s own !ERROR! marker and preserves the raw stored row when opened in a fresh process. XML metacharacters still do not round-trip through its serializer; this error path has headless evidence only. Visual fidelity remains unverified. Open the illustrated View-tree preview; it is not a native screenshot.

sh tools/fetch-notepad.sh
target/release/droidless run --headless --ephemeral --size 390x844 \
  --click "＋" --input "Hello, desktop" artifacts/apks/notepad-v1.0.0.apk

From the repository root, python3 tools/compatibility.py verifies both Notepad SQLite rows, list refresh and existing-note title/body edits after restart. The body probe excludes XML metacharacters; see the verification record for that limit.

The original Notepad options menu loads through its own AppCompat code. Headless Delete now returns to Notes, removes only the chosen SQLite row, and preserves the survivor’s original ID, title and body through restart and reopen. Snackbar measurement and its original translation/alpha start callbacks execute. Clock-driven View property frames, cancellation, callback GC and fault cleanup pass a compiled contract. Timed headless replay shows the original message and UNDO label at 250 ms, then removes the Snackbar after another 3000+250 ms while retaining the exact surviving row. Headless Undo also restores title/body with a fresh auto-increment ID, keeps the survivor exact and reopens both fields after restart; the old timeout causes no further change. Native menu input, Delete/Undo and timed feedback remain unverified. Current checks and exact scope.

Headless navigation taps reveal Notepad’s original drawer frame at 100 ms and complete its settlement at 1000 ms. Back closes the drawer while keeping Notes and both exact note rows. Shared rendering runs the APK’s computeScroll callbacks; explicit View focus requests now retain real ownership and execute guest callbacks. Compiled checks cover descendant policies, callback GC, removal and adapter refresh. Physical drawer input and full focus/IME remain unverified. Selecting Create or edit folders opens Edit Folders and binds the original editor/button listener; Back retains both exact note rows. Installed AppCompat inflater callbacks construct the actual guest AppCompatImageButton. Cloning, merged callbacks, attributes, ViewStubs, GC and fault cleanup pass compiled checks. Starting creation now passes descendant coordinates, resource backgrounds, TextPaint and child drawable-state callbacks. Tapping the original editor opens Done and writes exactly one named folder in SQLite. The new row now renders through themed text appearance and sized attachment callbacks. A fresh process reopens the visible folder, and Back restores both exact notes. Saved-row attachment now invokes its actual TextInputLayout binding callback. Headless focus and pending input complete; a fresh process discards an unconfirmed name and retains both exact notes and the saved folder. Native font family/style assignment passes component checks on buttons, labels and editors. AppKit first-responder gains now request actual guest focus. Component checks cover key-view traversal, retained selection, refused focus and callback failures. The shared dispatcher also creates and renames folders in optimized replay; unconfirmed input is discarded on restart. Complete bidirectional focus and physical folder input remain unverified. Host focus evidence. TextWatcher and scalar ValueAnimator callbacks execute real DEX; ARGB and retained Paint shadow state support label calculations. Paint/TextPaint ascent/descent use the same actual font selection as AppKit controls. Original rename confirmation completes; the same folder ID/new name survive restart and Back with both exact notes. Headless folder deletion is verified below; physical folder input and Android font parity remain unverified. Current folder rename and font-metrics evidence.

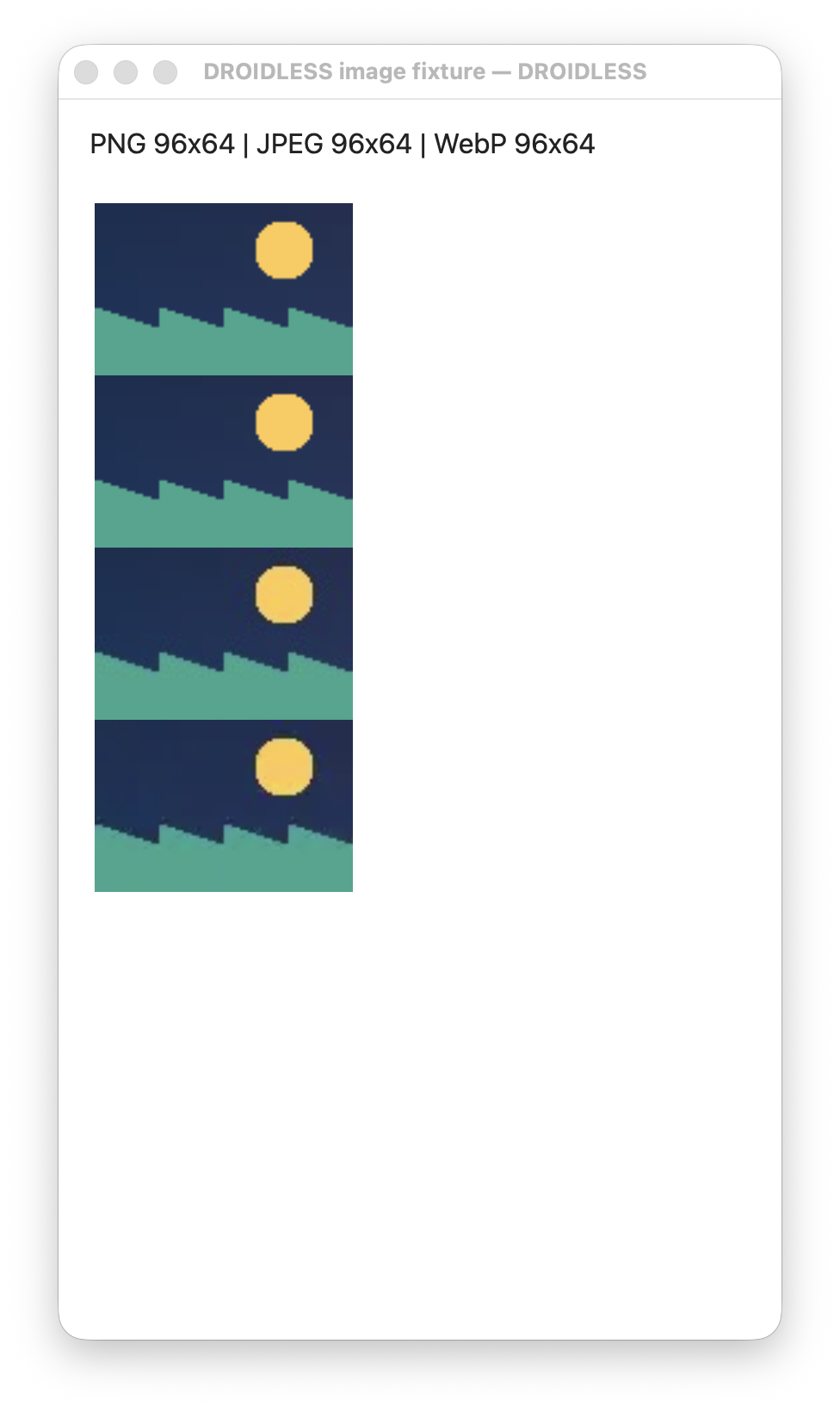

The authored Images APK packages 96×64 PNG, JPEG and WebP assets. Its original DEX checks BitmapFactory resource bounds and sample sizing, stream and byte-array decoding, ImageView resource/bitmap/drawable assignment, and XML src. Four ImageViews displayed the images in an actual AppKit window. This is fixture evidence. Separately, the unmodified SwpieView APK now opens a selected folder, displays three thumbnails, opens JPEG/PNG/WebP images in its full-screen Activity and returns with Escape. FrameLayout gravity now places its bottom controls below the toolbar. Root touch replay diagnoses its slideshow listener: DOWN starts a Timer, UP cancels it, and a held DOWN reaches rejected worker UI access. Its own Parcelable callbacks transfer the image stack; touch replay verifies exact next/previous image bytes and first/last bounds. Native taps hide and restore controls; native drag verification remains pending. GIF animation and slideshow remain unproven.

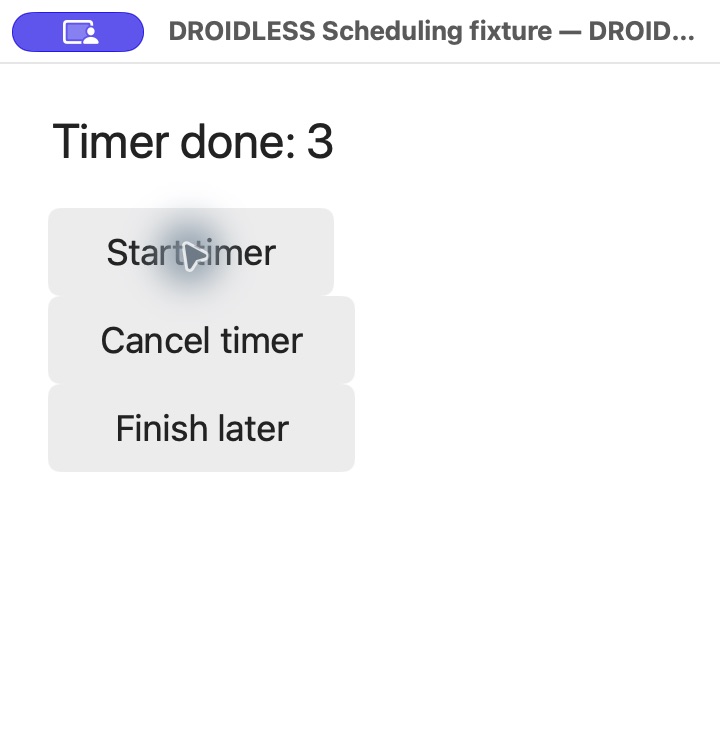

The authored Scheduling APK now also verifies native delayed callbacks: Start displays Waiting for timer, then Timer done: 3 after three callbacks. Cancel before the first deadline remains cancelled; Finish later closes through guest code with status 0. Headless checks cover ordering, Message/Handler overrides, token identity, GC, faults and limits. The desktop Java comparisons cover unstarted metadata/manual run, the pure WorkerContract and portable Timer validation/serial tasks. Compiled TimerTask checks also verify Date deadlines, bounded fixed-rate catch-up, cancellation/purge, GC, blocked task ordering and failure cleanup; results reach the UI through a main Handler. The optimized native action reaches Background timer done: 3; restart/cancel stays cancelled beyond later deadlines at a 420 × 720 viewport. The compiled Future contract checks reusable pools, result/cause retention, waits, cancellation and shutdown; its portable entry point passes on desktop Java. Native Start future worker waits for input, Deliver future input shows Future result: payload through the main Handler, and Cancel future worker stays cancelled. Normal close exits 0. Compiled headless worker checks also verify identity, FIFO waits, interruption, monitor ownership, main Handler result delivery and GC across pauses. A native Start worker click now delivers the complete result in accessibility state and closes with status 0; its long visible label clips at the 360 × 340 test viewport. Worker sleep/join checks cover deadlines, interrupts, argument errors, monitor retention and GC; the portable contract also passes on desktop Java. The automated native Sleep, join and finish action checks main Handler delivery after AppKit opens, then closes with status 0. Its result painting before immediate finish and manual native input remain unverified. Scheduling scope and reproduction.

After the managed-frame change, the fresh release passes automated calculator/timer replays. Native window automation could not attach to the running calculator, so its desktop interaction and clean-close recheck remains incomplete for this increment. The captures record earlier native milestones. Exact verification scope.

Both calculators are interactive subsets: menus, gestures, complete visual fidelity and every numeric edge case remain untested. No Android reference differential run, Linux build/UI validation or broad compatibility is claimed. Full verification record · APK evidence catalog.

Development & local checks

All CI runs locally. The script checks formatting, compilation, tests, Clippy warnings and the release build. No GitHub Actions workflow is installed.

sh tools/ci.sh

Parser tests reject truncated DEX/XML/APK data, invalid indexes, unsafe ZIP paths and duplicate ZIP entries. Runtime tests exercise real D8-generated arithmetic, wide values, arrays/covariance, inherited interface dispatch, explicit/implicit exceptions across 17 fault paths, catch-all/finally, lifecycle, resources, XML layouts and input callbacks.

Managed DEX calls now pause/resume with their caller/callee frames retained. Compiled checks collect between each instruction and verify reference/wide returns, catches/finally, diagnostic stacks and limits. The normal FrameContract also passes on desktop Java; native bridges and class initialization remain synchronous within a step. Bounded workers now use these frames for queue/monitor waits; suspension across a synchronous native bridge/initializer remains unsupported. Frame semantics.

Failed-initialization tests cover wrapping versus Error propagation, subsequent NoClassDefFoundError, and cause retention across garbage collection.

Local CI passes 150 Rust tests, checks native font family/style assignment and matching ascent/descent on three AppKit control types, verifies native editor focus/selection/refusal, separate dialog panels/control callbacks, foreground/clipping paint and full accessibility labels for shortened text, and also runs 4,096 seeded APK/DEX/XML/resource mutations without panics. The compatibility replay checks the authored XML pull parser, PNG/JPEG/WebP fixture and four ImageViews, plus grid item clicks, adapter refresh, child result delivery, Back cancellation, three selected-folder images and SwpieView full-screen viewing/Back through guest Parcelable reconstruction, image swipes and confirmed tap hide/show. The authored touch contract also covers coordinate translation, capture, click fallback, double taps, show/long press, scroll/fling, cancellation and callback GC/error cleanup. Native photo-grid clicks, disabled items and refresh are verified; viewport recycling and touch scrolling remain unsupported. This is deterministic smoke coverage; a continuous coverage-guided fuzz campaign remains future work. GitHub Actions are disabled.

The independent calculator replay is a separate local check. It verifies both fetched APK digests and tests actual headless TextView/EditText results:

sh tools/fetch-kascalc.sh
sh tools/fetch-simple-calculator.sh
python3 tools/compatibility.py

Normal runtime tests use checked-in authored APKs and require no Android SDK. Rebuilding them requires Android SDK compiler tools. A development macOS app bundle can be assembled separately:

sh tools/macos-app.sh

The bundle is unsigned and intended for development. The project is Apache-2.0; third-party fixtures retain their upstream licenses. Read the source and repository documentation ↗.

Source documents

Download the original project documents for the exact implementation scope, evidence and next milestones. Roadmap items are future objectives.
